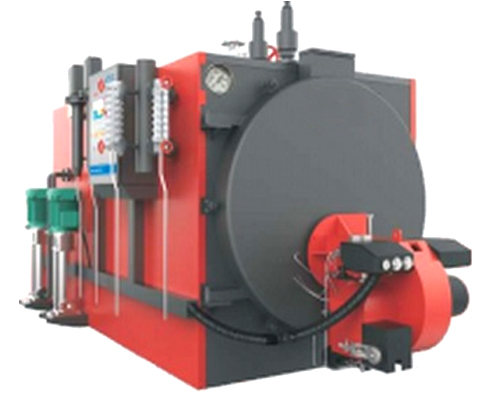

Steam Boilers Oil / Gas Fired

Heatex Steam Boilers are of multi pass smoking tube Vertical/ Horizontal, Fully Automatic design with proven performance. The Boilers are manufactured as per latest Indian Boiler Regulations / International codes as class-I equipment. The boilers are fitted with High combustion efficiency fuel firing equipment resulting in optimum thermal efficiency to achieve economical running cost of the boilers.

The range of the product makes the selection to the nearest size of equipment to save on Capital Cost. Heatex also offers optional equipment: Air pollution control system, flue gases & fuel handling systems. Water treatment plants etc. Heatex other products are Hot water Generators suitable for oil / gas/coal / wood / husk firing, electric hot water generators, Thermic fluid heating system, incinerators, Calorifiers, heat exchangers and other boiler house ancillaries and accessories.


Technical Specifications

S. No. Boiler Model HEO-50 HEO-75 HEO-100 HEO-150 HEO-200 HEO-250 HEO-300 HEO-400 HEO-500
1. Steam Output & A 100°C Kg/hr.   500 750 1000 1500 2000 2500 3000 4000 5000
2. Steam Stop Valve N1 50mm. 50mm. 50mm. 65 mm. 80 mm. 80 mm. 100mm 100mm 125mm
3. Feed Check Valve N2 25 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 50 mm.
4. Safety Valve N3 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 50mm. 50mm. 65mm.
5. Blow Down Valve N4 25 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 40 mm. 50mm.

Over All Sizes (In mm)

Length (A) 2700 2900 3250 3400 3750 4150 4500 5000 5100
Width (B) 1650 1750 1825 2075 2200 2300 2400 2500 2800
Height (C) 2300 2450 2500 2600 2750 2900 3000 3200 3400
Flue Gas Outlet (D) 250 300 350 400 450 500 550 600 650
Foundations Width (E) 1500 1600 1700 1900 2000 2100 2200 2300 2600
Foundations Length (F) 2100 2200 2600 2800 3100 3500 3800 4200 4300
